- Dimensions: Round up to Ø 4.5 m / Rectangular up to 3 m x 8 m
- Temperature range: -100 °C to +1,200 °C
- Designs: Inlet vane controls, double pendulum flaps, butterfly dampers, 3-way bypass dampers, multi-leaf dampers, slide gates, tandem dampers, double shut-off dampers
- Seals: Blade seals: metallic, metallic flexible and soft-sealing, as well as various shaft seals
- Actuation technology: Actuators and control drives in pneumatic and electric versions, worm gears and manual levers, multi-locking
- Safety: Internal and external limit switches
SIEMPELKAMP Industrial Dampers & Slide Gates
Controlling and shutting off gas flows under extreme thermal and mechanical loads requires the highest level of engineering precision. As a premium manufacturer, Siempelkamp Industrial Fans produces tailor-made industrial dampers and slide gates that set standards worldwide in heavy industry, thermal processing technology, and environmental technology. With an operating range from -100 °C to +1,200 °C, these components offer maximum safety and reliability in Quality Made in Germany.
Every industrial damper is individually designed according to the specific requirements and process parameters of the customers. Whether for precise volume flow control or absolutely tight shut-off – the design is based on decades of experience and the use of state-of-the-art manufacturing processes. The flexibility in dimensioning allows for the realization of round designs up to a diameter of 4,500 mm as well as rectangular versions up to dimensions of 3,000 x 8,000 mm.
The technological diversity is reflected in the different designs, which offer the optimal solution for almost every industrial scenario. The portfolio includes, among others:
- Butterfly Dampers & Shut-off Dampers: For reliable regulation and separation of media flows.
- Multi-leaf Dampers: Ideal for large cross-sections and demanding control tasks.
- Guillotine Dampers & Slide Gates: For space-saving, high-tightness shut-off in ducting systems.
- Inlet Vane Controls: For flow-optimized volume flow control directly upstream of fans.
- Diverter and Directional Dampers (e.g., 3-way bypass dampers): For efficient distribution or redirection of gas flows.
- Non-return Dampers & Double Pendulum Flaps: For automated control of flow directions and material streams.
- Special Solutions: Such as tandem dampers, double shut-off dampers for sealing air systems, and high-efficiency slide gate designs.
Damper Designs & Variants

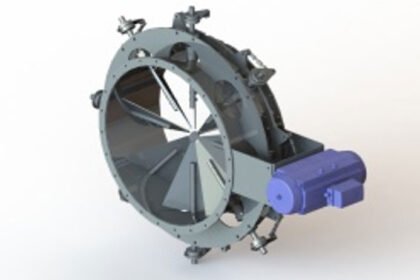

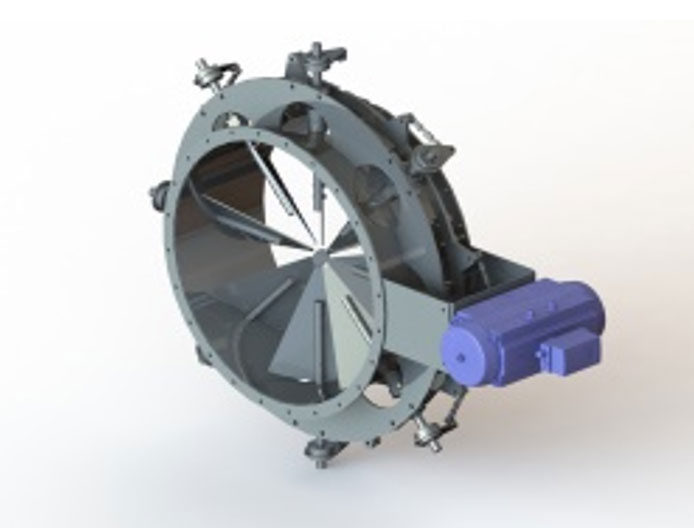

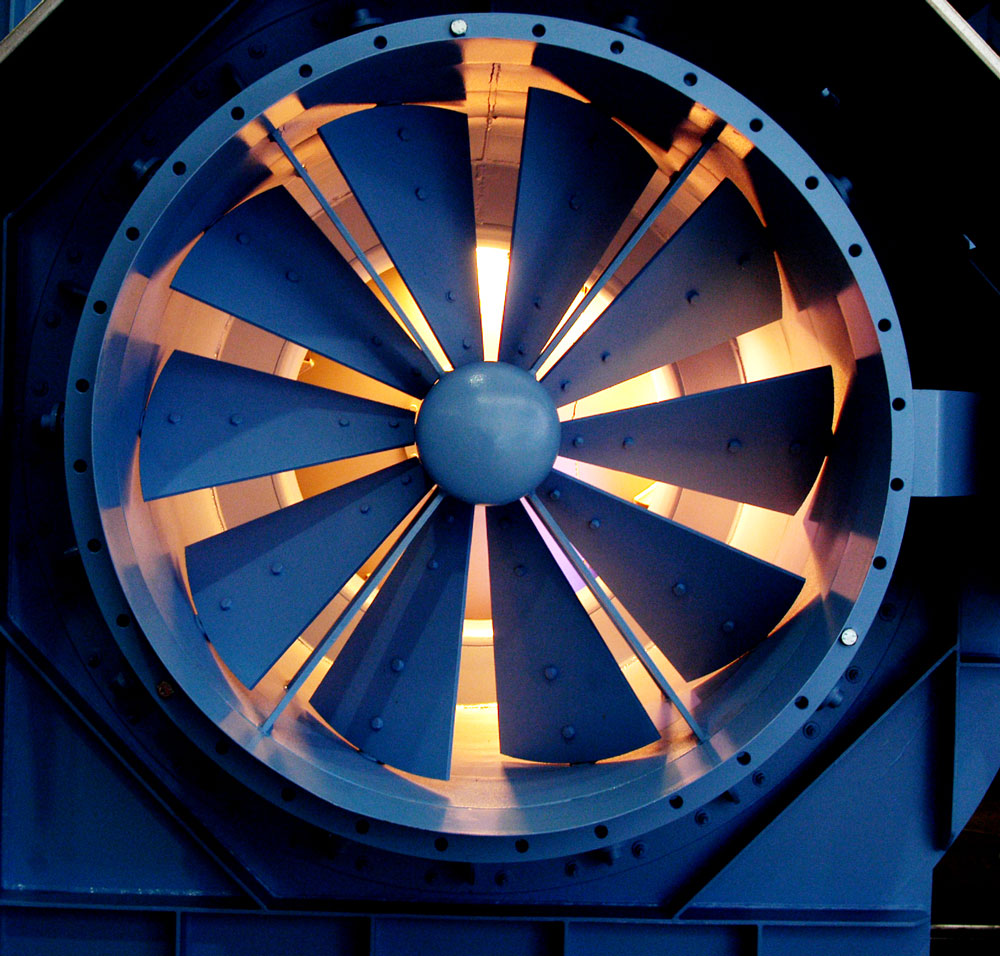

Inlet Vane Controls

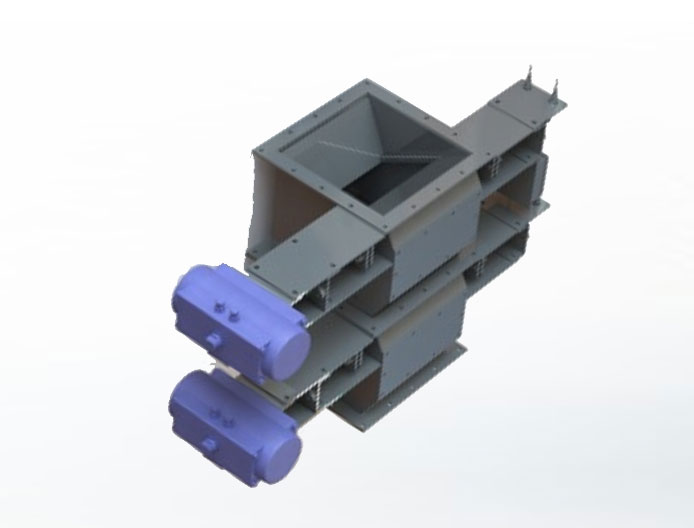

Double Pendulum Flap

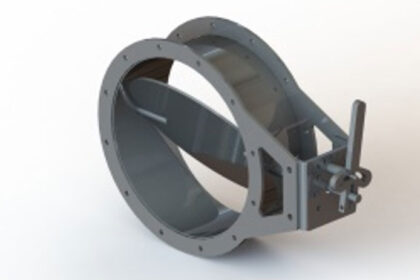

Butterfly Damper

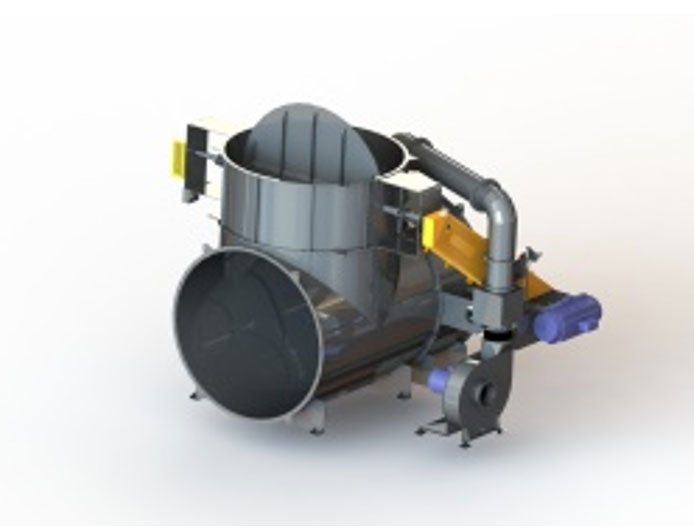

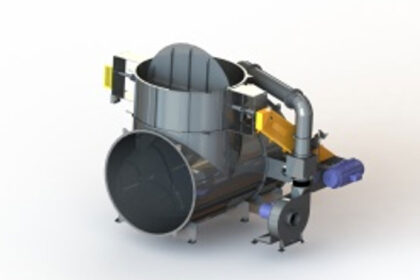

3-Way Bypass Damper

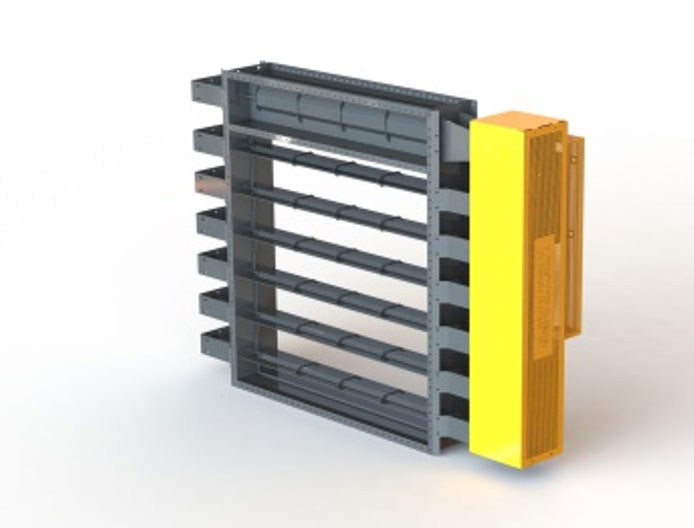

Multi-Leaf Damper

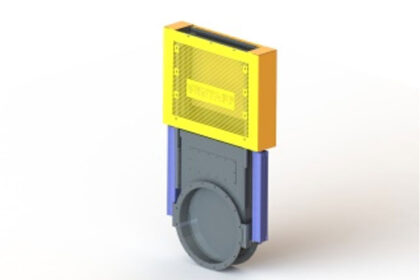

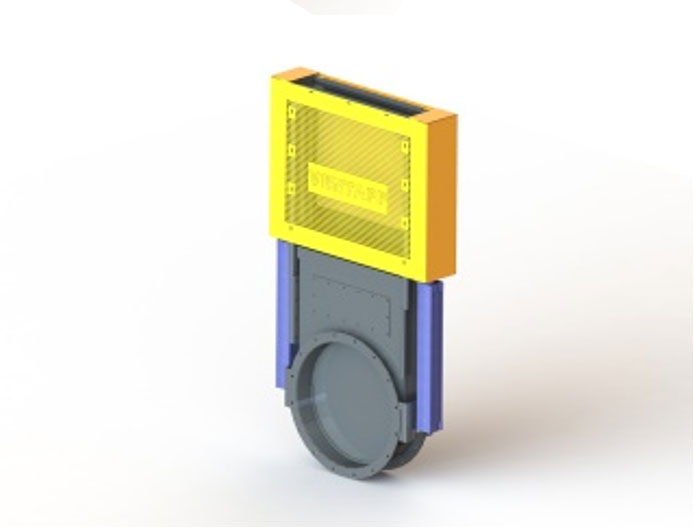

Slide Gate

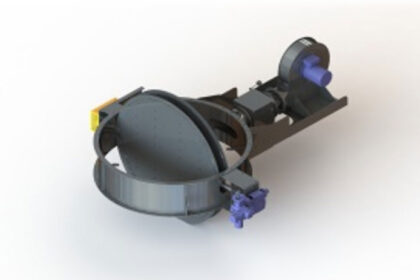

Tandem Damper

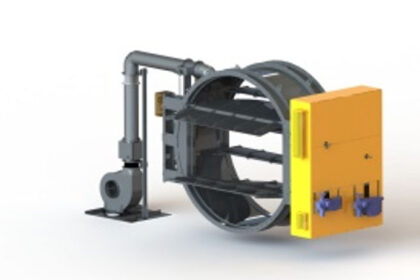

Double Shut-off Damper

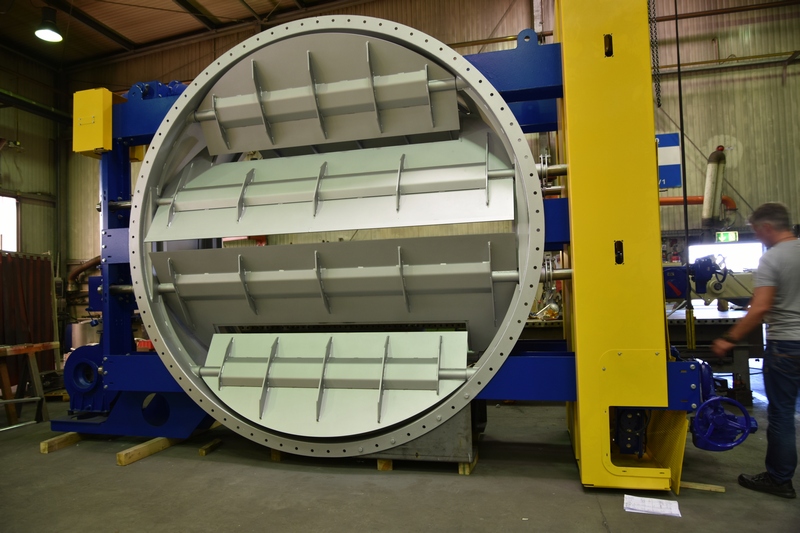

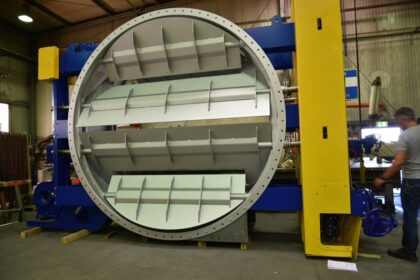

Multi-Leaf Double Shut-off Damper DN 3200

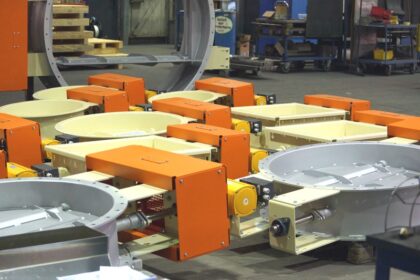

Control Dampers with Pneumatic Actuator

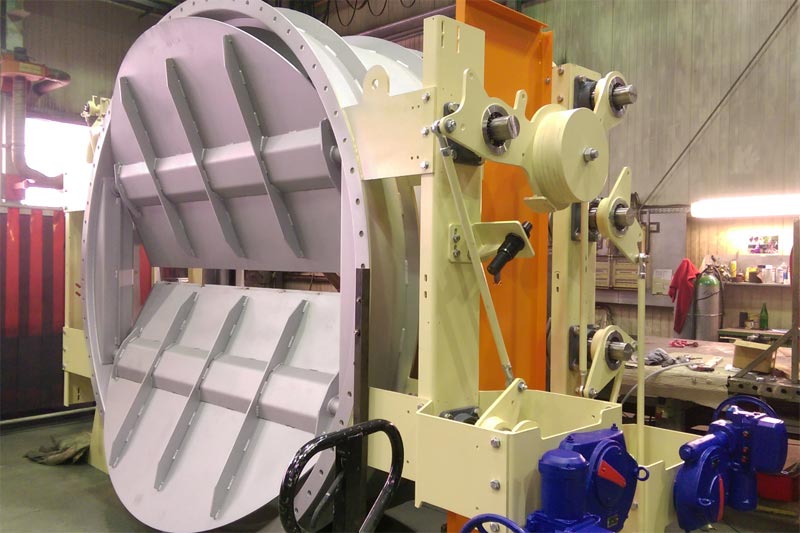

Two-Wing Double Shut-off Damper
Multi-leaf Dampers

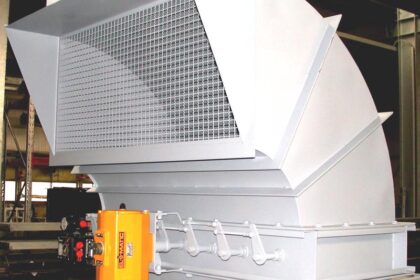

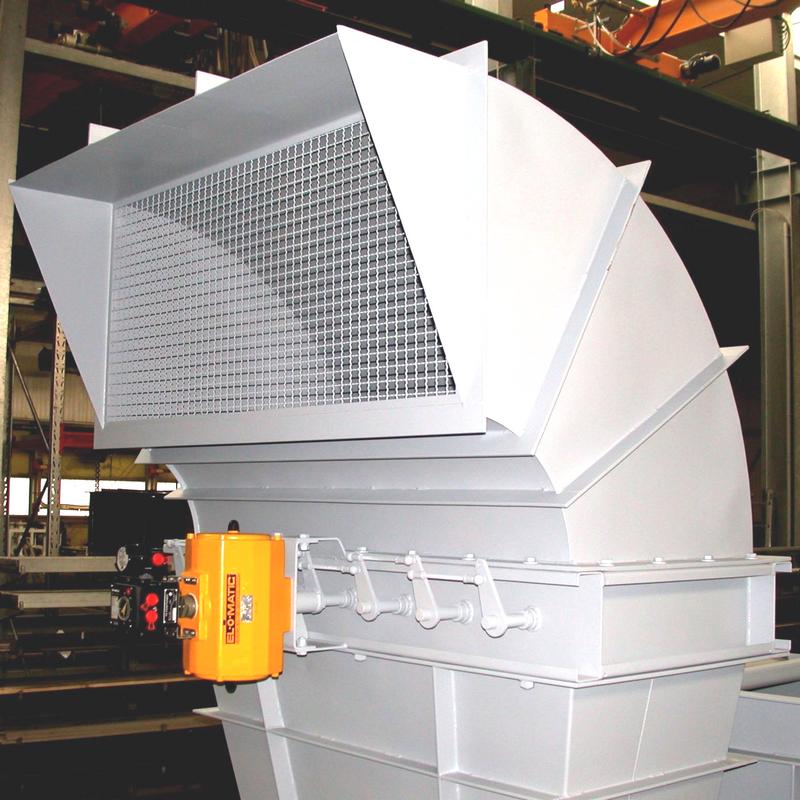

Multi-leaf Damper + Suction Bag + Elbow

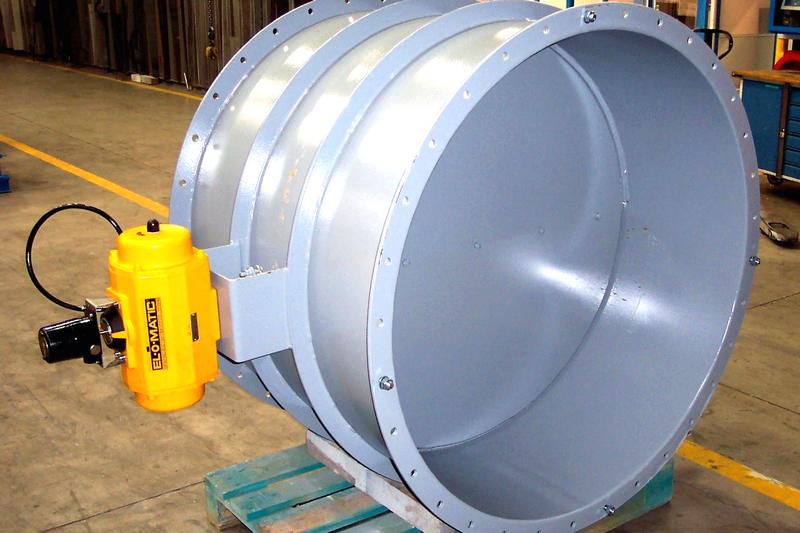

Damper + Pneumatic Actuator

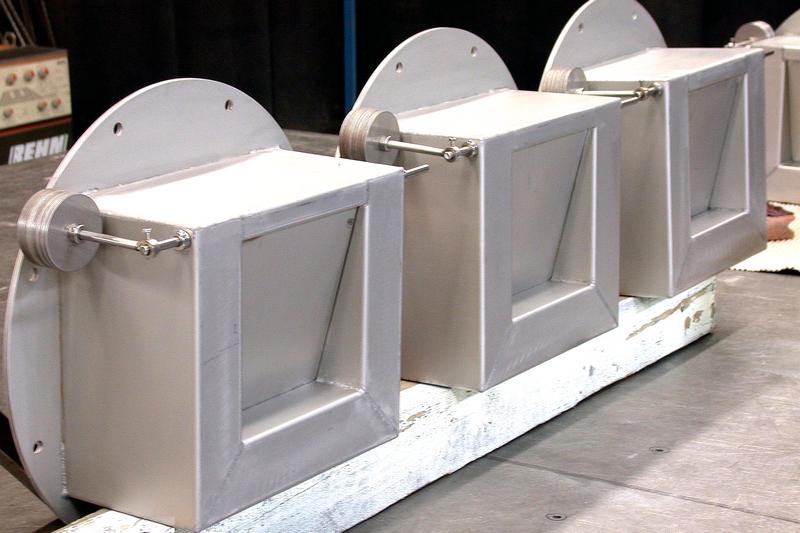

Non-return Damper with Weights

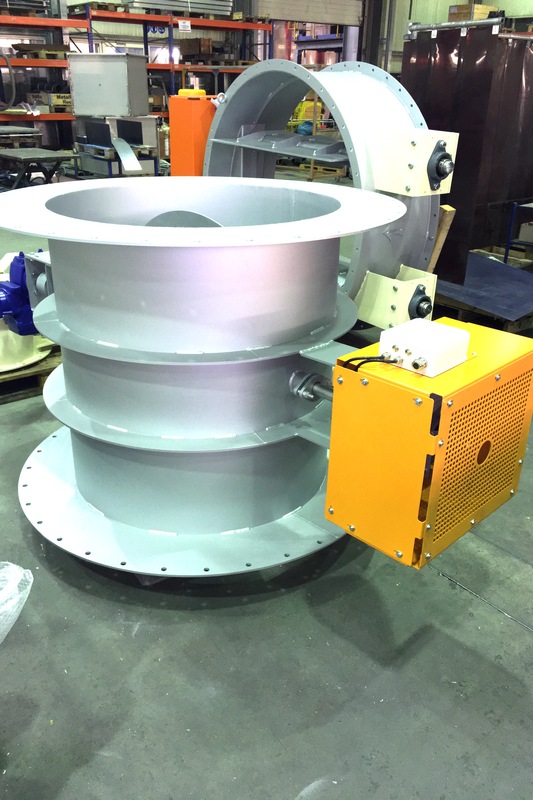

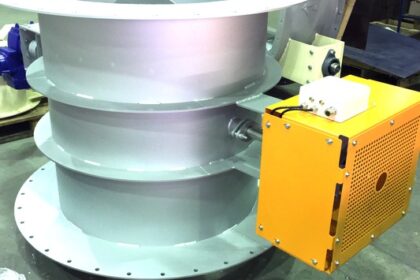

Shut-off Damper with Special Dimensions
Dampers in the Hot Gas Area
A special focus is placed on tightness and durability. Depending on the requirement, metallic, metallic-flexible, or soft-sealing blade seals are used. Complemented by various shaft seals and gas-tight/pressure-resistant designs up to 10 bar, the components can withstand even aggressive or heavily dust-laden media. Control is achieved via diverse drive types that ensure exact positioning. This includes electric drives, pneumatic solutions (such as rotary lobe drives or piston rod cylinders), as well as manual versions using manual adjustment with a scale, worm gears, or lockable manual levers.
Damper Designs & Variants
Inlet Vane Controls
Double Pendulum Flap
Butterfly Damper
3-Way Bypass Damper
Multi-Leaf Damper
Slide Gate
Tandem Damper
Double Shut-off Damper
Multi-Leaf Double Shut-off Damper DN 3200
Control Dampers with Pneumatic Actuator
Two-Wing Double Shut-off Damper
Multi-leaf Dampers
Multi-leaf Damper + Suction Bag + Elbow
Damper + Pneumatic Actuator
Non-return Damper with Weights
Shut-off Damper with Special Dimensions
Dampers in the Hot Gas Area
As part of the comprehensive full-service solutions, Siempelkamp Industrial Fans accompanies projects from the initial on-site evaluation through 3D design (FEM/CFD) to worldwide implementation. Damper technology is an integral part of an overall system and can be perfectly combined with Industrial Fans, Industrial Silencers, Industrial acoustic enclosures, as well as Industrial Insulation, Industrial Filter Units, and Industrial Expansion Joints, all from a single source. Integration into complex Industrial Ducting Systems and Industrial Chimneys is carried out seamlessly from a single source. The Repair, Service & Maintenance area also ensures manufacturer-independent upkeep and long-term performance of all components worldwide.
Damper Examples

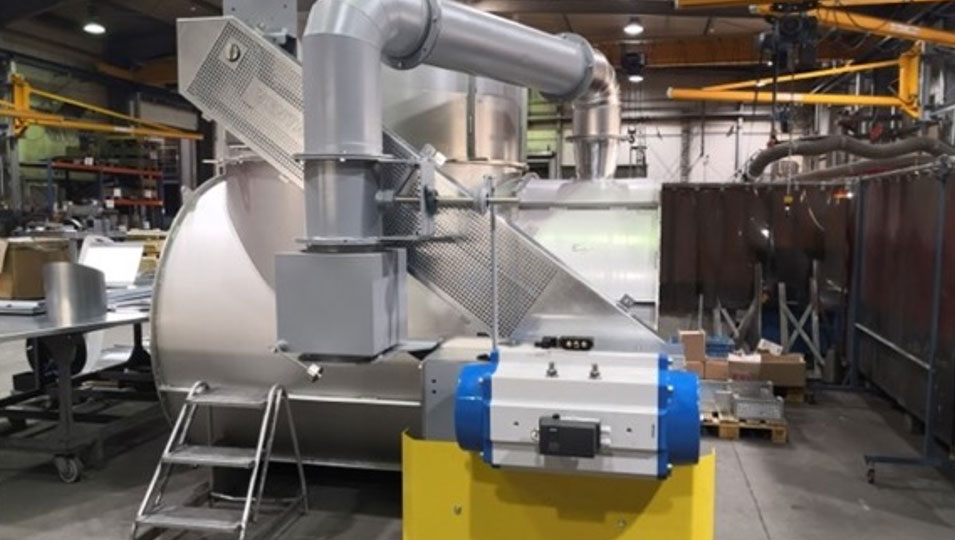

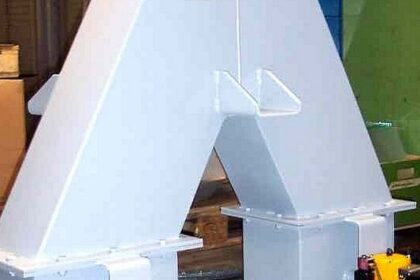

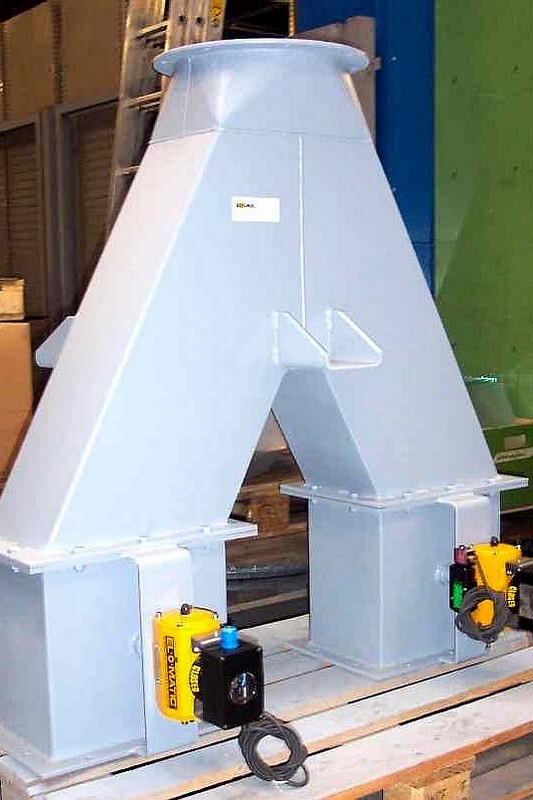

3-Way Bypass Damper
Inlet Vane Control

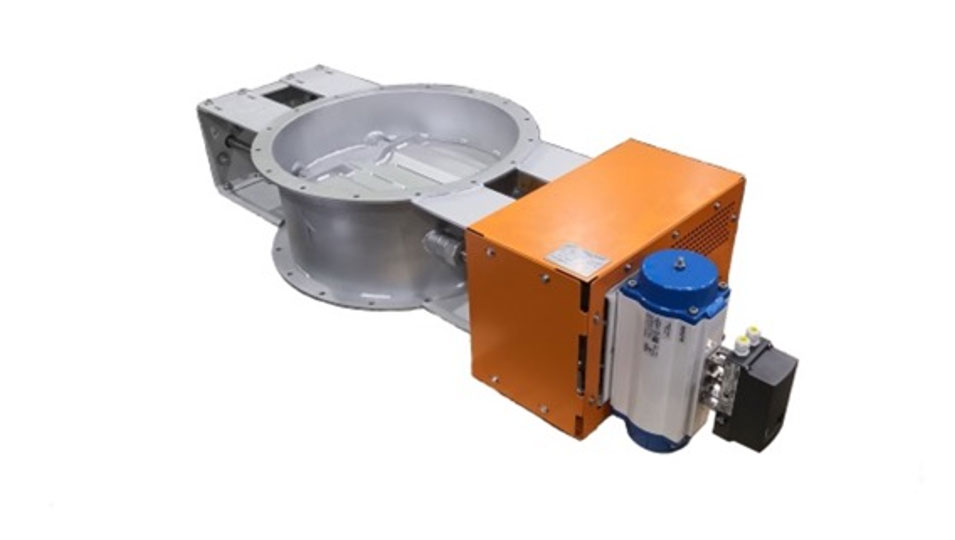

Pneumatic Control Damper

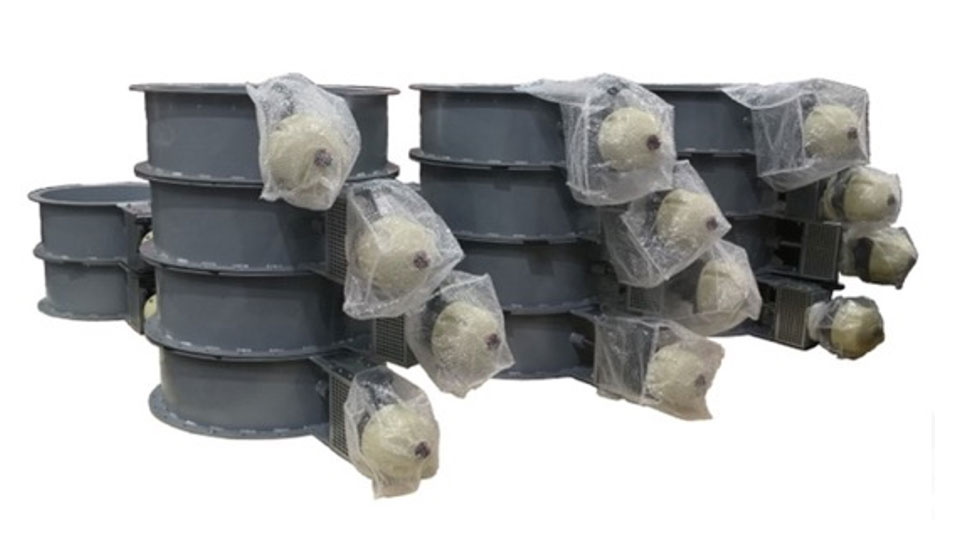

Electric Butterfly Dampers

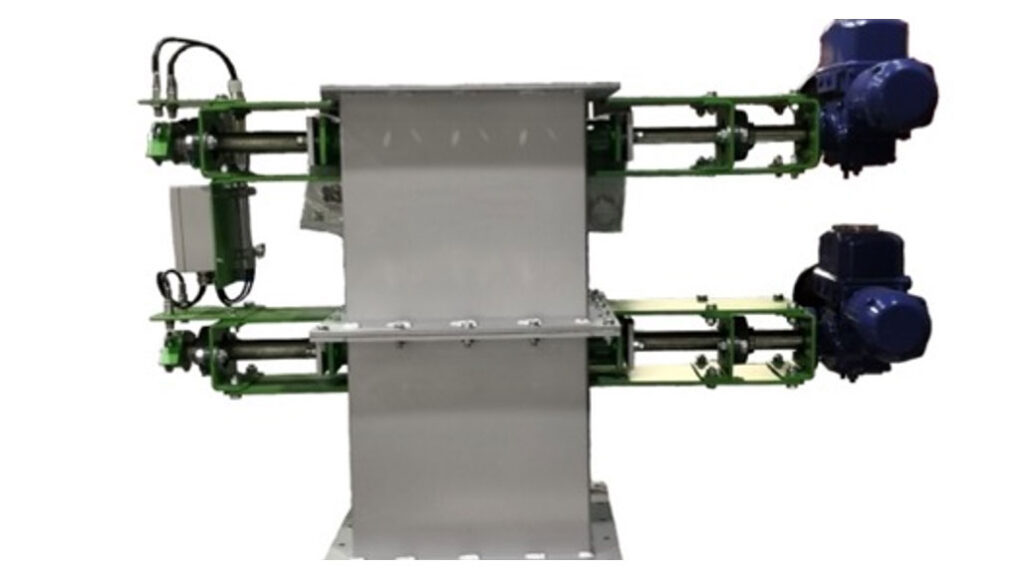

Electric Double Pendulum Flap

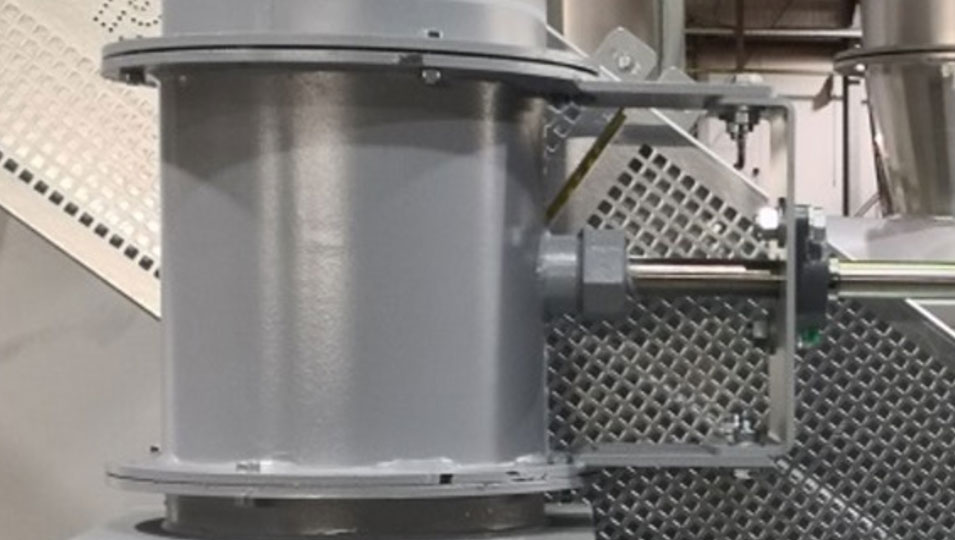

Sealing Air Damper

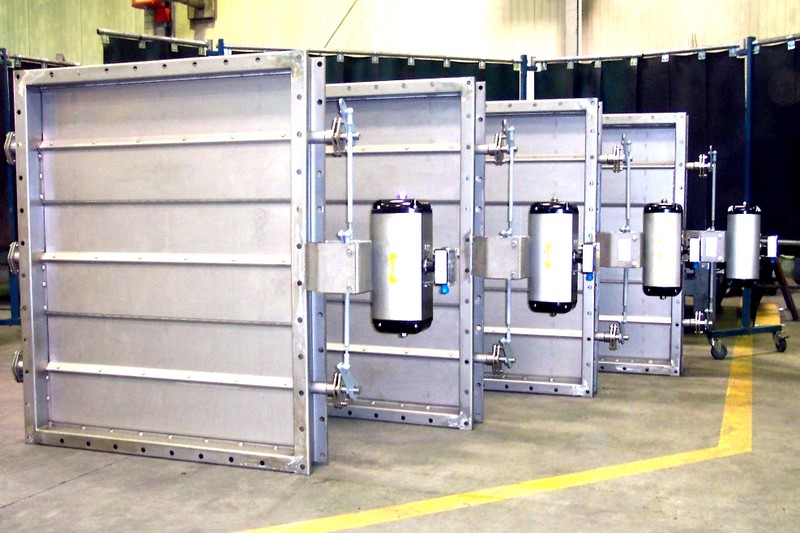

Pneumatic Multi-leaf Damper

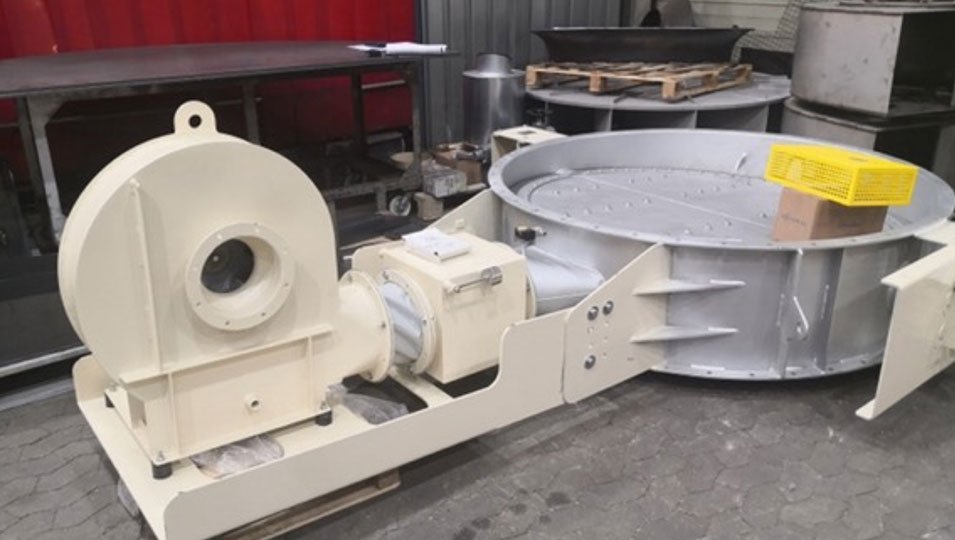

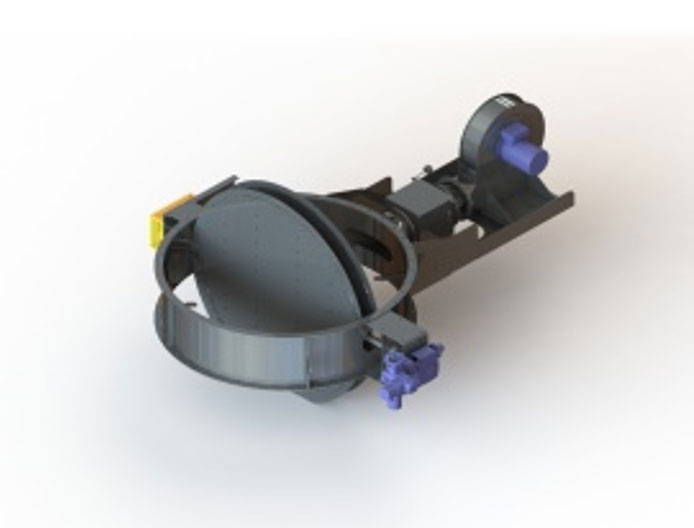

Tandem Damper DN1800 with Sealing Air Blower

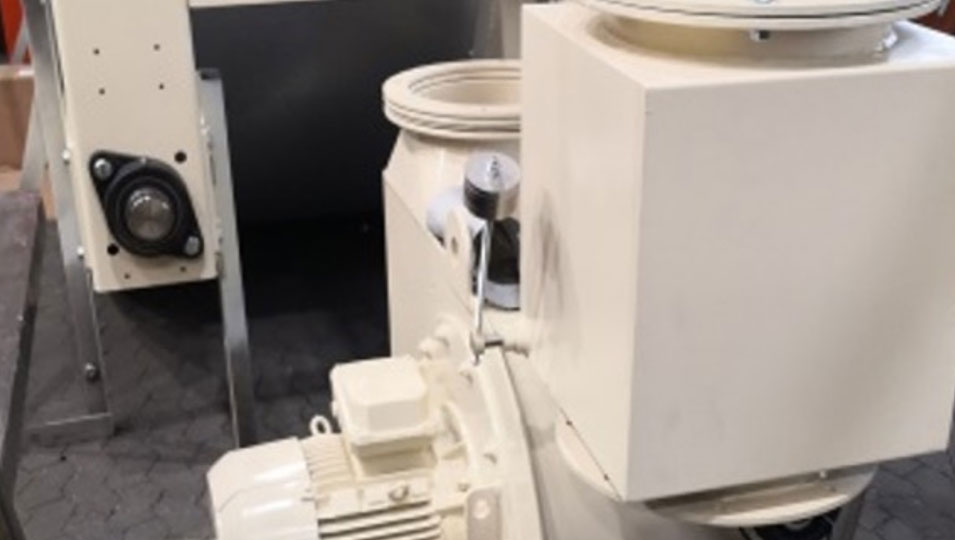

Non-return Damper

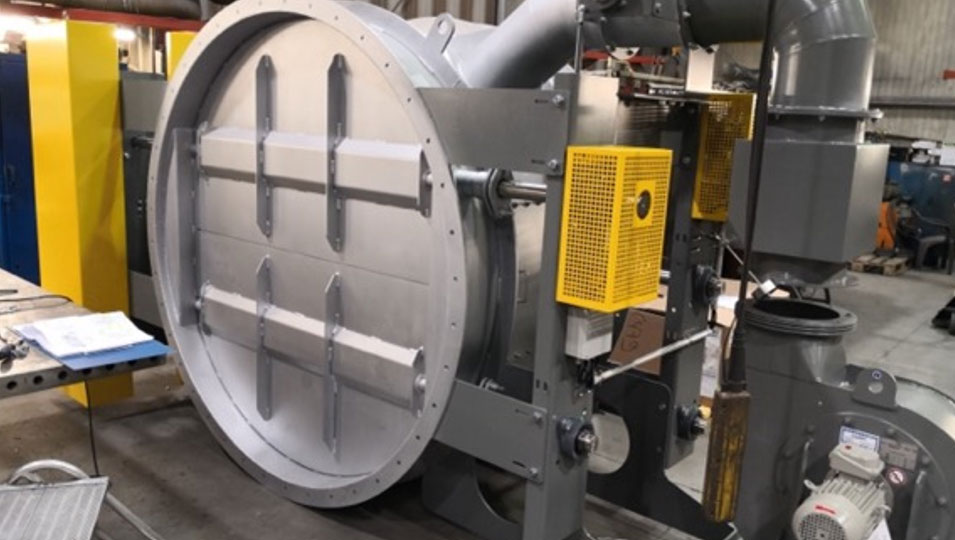

Double Shut-off Damper DN2000

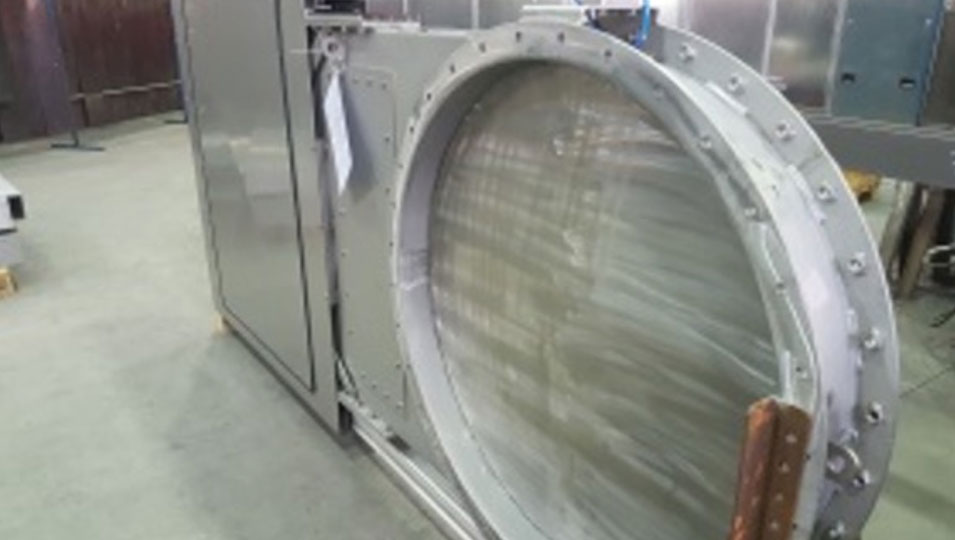

Pneumatic Stainless Steel Slide Gate DN1250
